DeWater® TSP
Triple Staged Screw Press
PEWE DeWater® TSP Systems

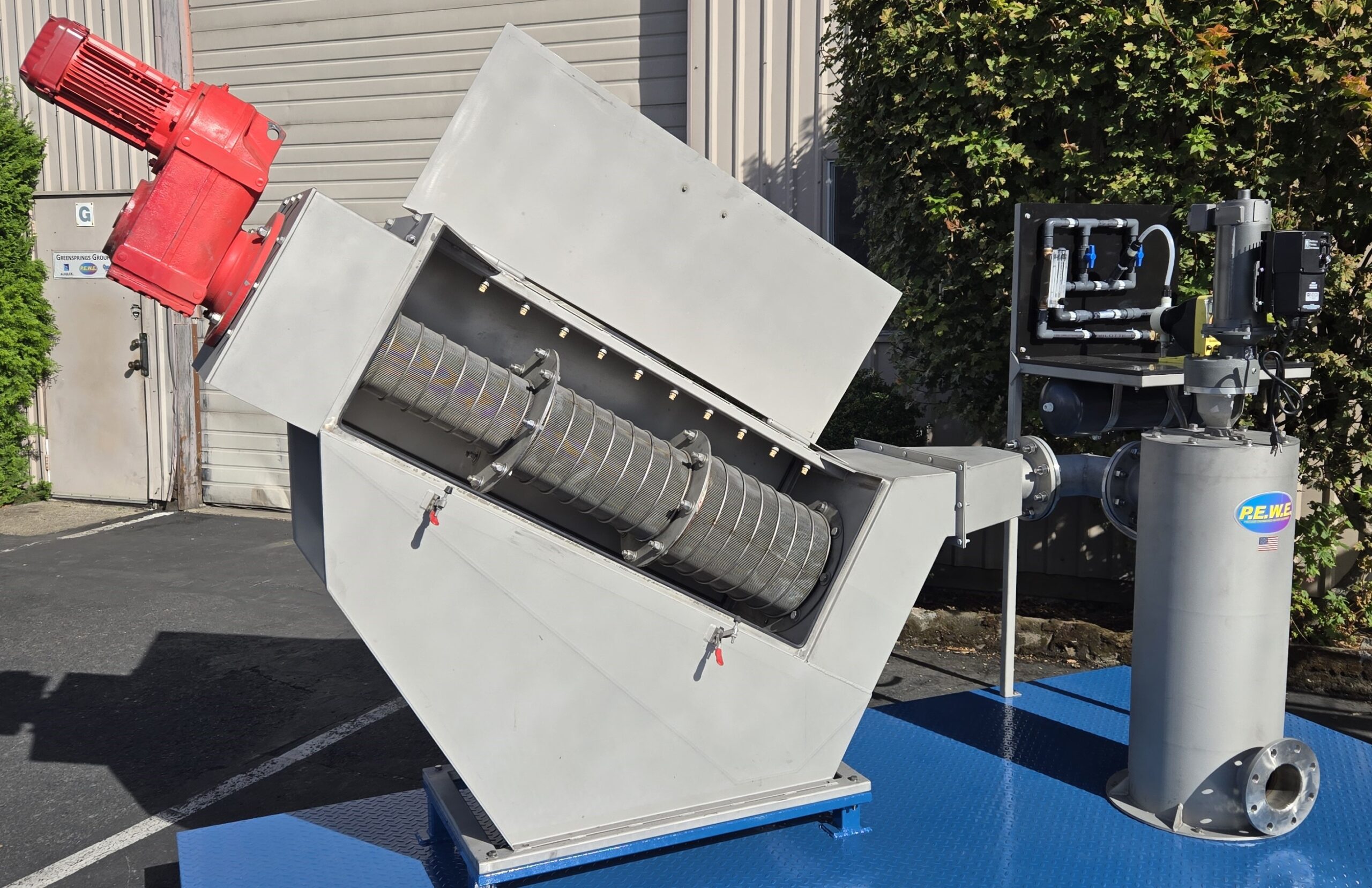

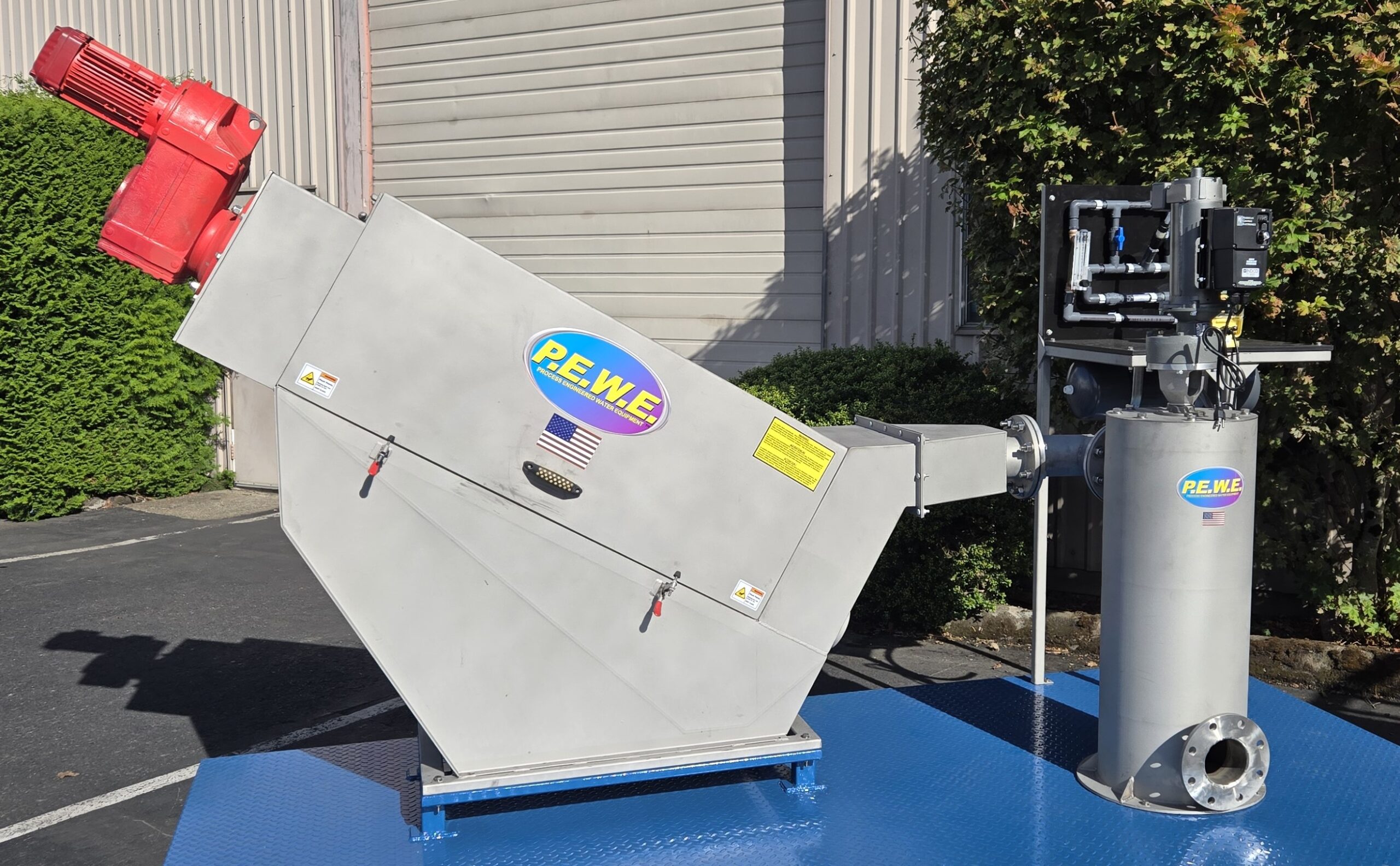

The PEWE DeWater®TSP triple staged screw press consists of an auger screw assembly, transport tube, drainage section, press section and me chanical drive system. The TSP will be supplied with a flanged inlet, flanged solids discharge and a flanged drainage fitting. The TSP is de signed to extract moisture from wet solids. The unit DeWater®TSP–250 utilizes a staged compaction screw to compress, dewater and transport the solids while allowing the squeezed liquid to drain off.
DeWater® TSP Design

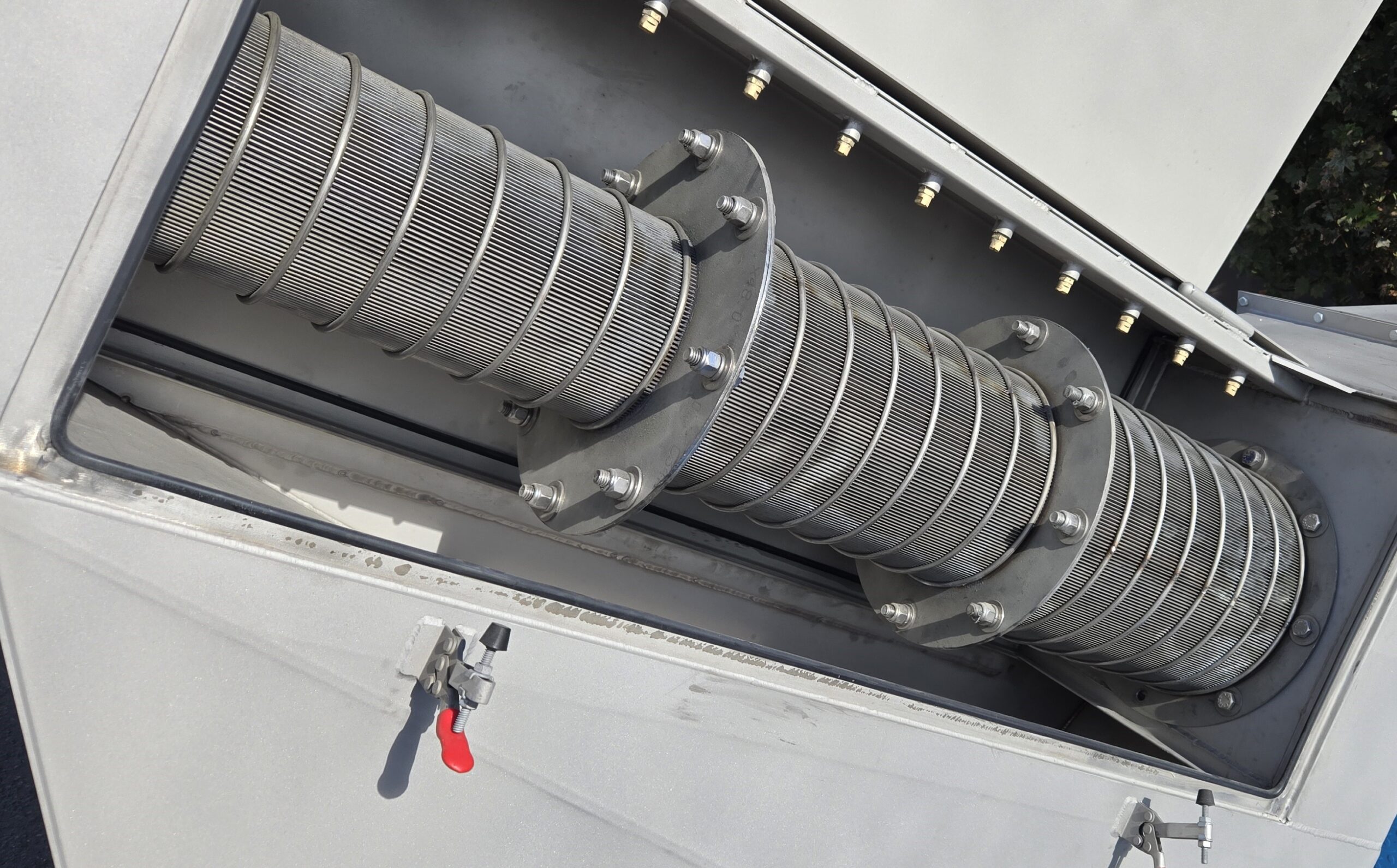

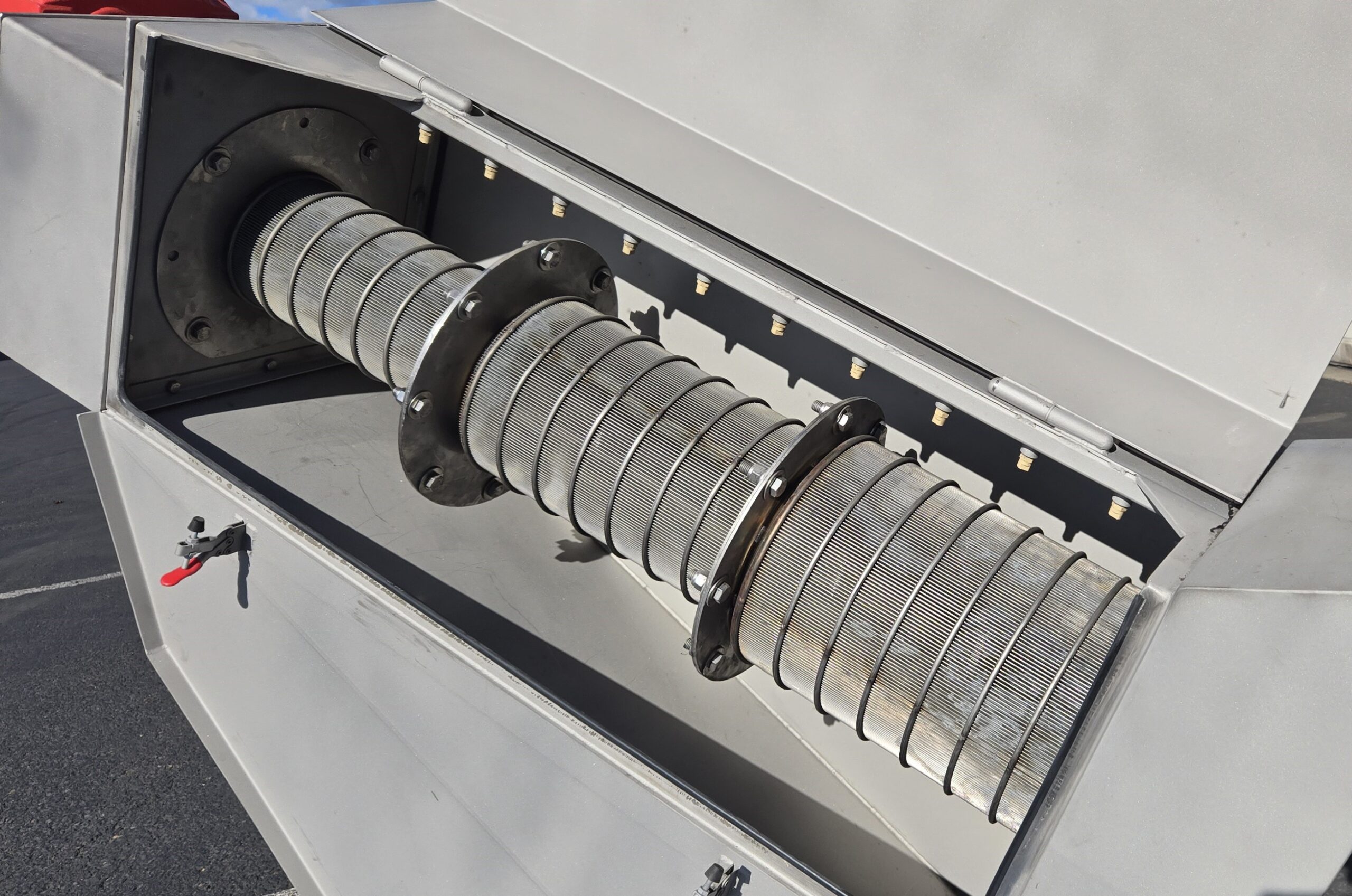

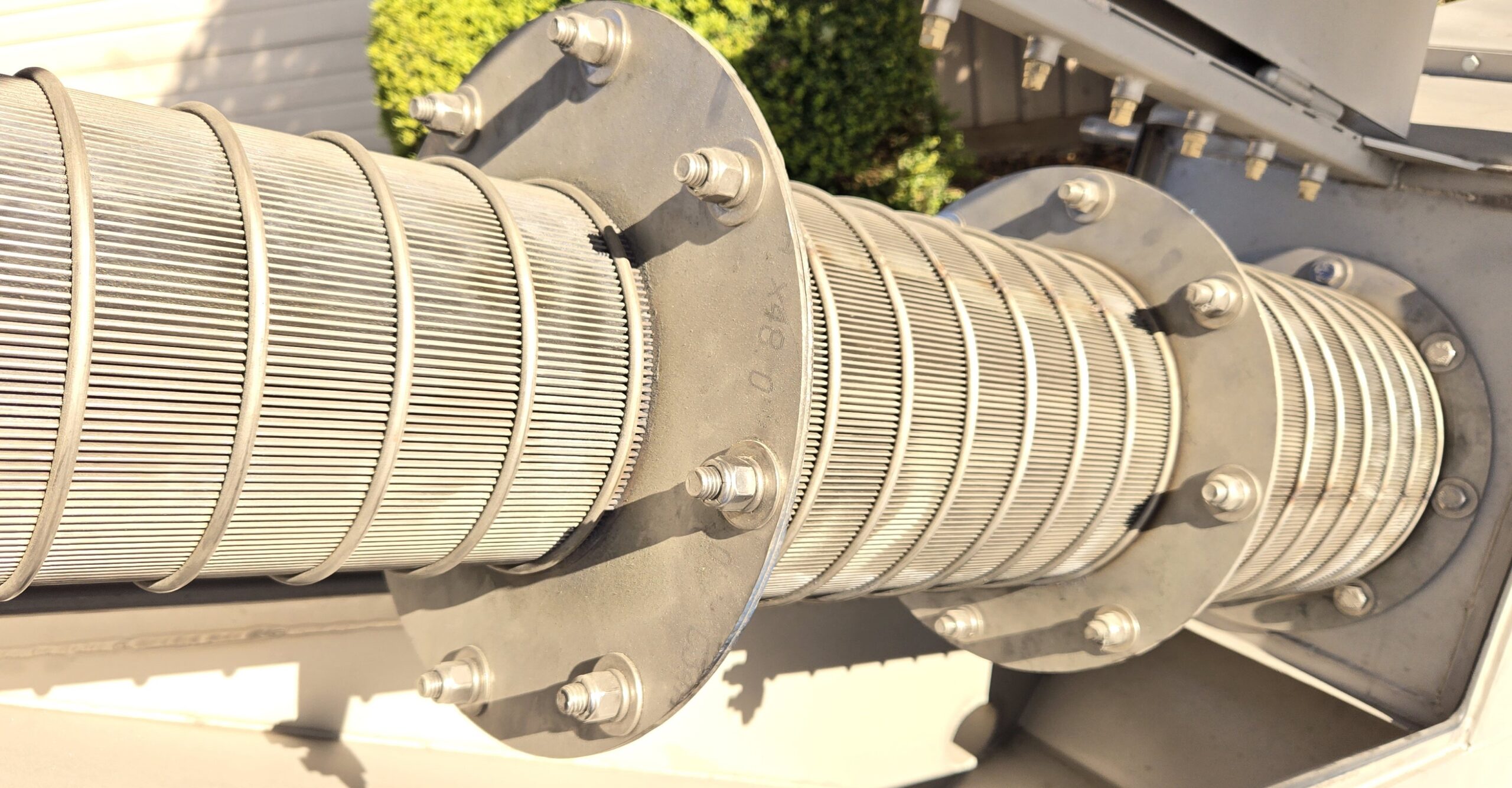

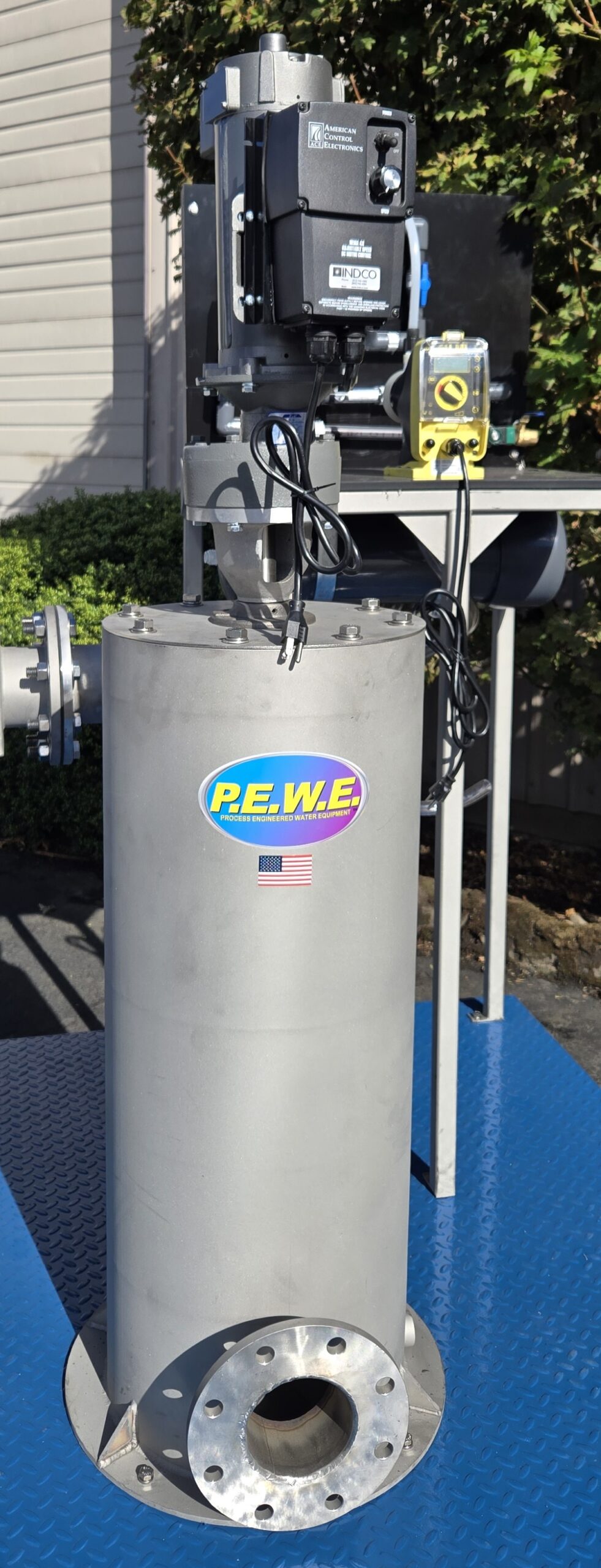

The PEWE DeWater®TSP first features a polymer and solids pre-blending system with fine adjustment. The enclosed screw assembly will consist of a heavy-duty shafted spiral with three stages of progressive compression. The shaft is direct coupled to a gear motor. The press zone consist of a cylindrical wedgewire insert, shower manifold and duplex access doors. The TSP unit comes with an inclined support base for capturing the filtrate. The TSP may be ordered with a PEWE Command Control® RX panel.
DeWater® TSP Operation
The PEWE DeWater® TSP triple screw press receives influent through the flanged inlet hopper and the incoming stream is accepted into the drainage section where free liquid is allowed to pass through a drainage fitting and removed for further processing. Solids are then conveyed by the auger screw through the transport tube and press section. The solids may be washed in the press zone. The solids are then gently compacted in the press zone.
Triple Staged Screw Press — High & Dry Solids
- BAKERY
- BREWERY
- FRUIT
- FOOD PROCESS
- MEAT
- MINERAL
- MUNICIPAL
- PETROCHEM
- POULTRY
- PULP & PAPER
- SEAFOOD
- VEGETABLE
- WINERY
- WASTEWATER
| Application | Flow | Capacity | ||||
|---|---|---|---|---|---|---|
| Model | Auger1 inches |
Auger2 inches |
Auger3 inches |
Shaft inches |
Yds³ | M³ |
| This chart to be used as a guide only. Consult your PEWE representative. | ||||||
| TSP-150 | 10.0 | 8.0 | 6.0 | 4.0 | 1.0 | 0.76 |
| TSP-200 | 10.0 | 8.0 | 6.0 | 4.0 | 2.0 | 1.53 |
| TSP-250 | 12.0 | 10.0 | 8.0 | 6.0 | 3.0 | 2.30 |
| TSP-300 | 14.0 | 12.0 | 10.0 | 8.0 | 6.0 | 4.58 |
| TSP-400 | 16.0 | 14.0 | 12.0 | 8.0 | 12.0 | 9.20 |
